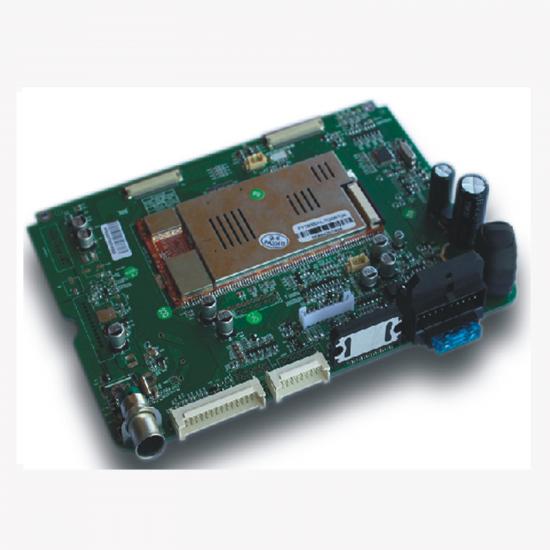

TFT Pcb Assembly Prototype PCBA Manufacturing

UL&IPC Standard & ISO
  • PCB Layer:

    4 L
  • Thickness:

    1.6mm
  • PCB Size:

    150*115mm
  • Min Size:

    0603
  • Min Pitch:

    0.1mm
  • Application:

    Industrial Control
  • Product Detail

Item

Speci.

PCB SMT Min thickness

T0.1mm

PCB SMT Max thickness

T4.5mm

PCB SMT Min Length

L3mm,

PCB SMT Min Width

W3mm

PCB SMT Max Length

 1200mm

PCB SMT Max Width

W 500mm

Min panel size

0.3mm*0.2mm

Max panel size

200mm*125mmSMD

component thickness

6.5mmT15mm

Min pin space

0.3mmPitch0.4mm

Min ball space

0.3mmPitch0.5mm

PCB DIP Min thickness

T0.8mm

PCB DIP Max thickness

T2mm

PCB DIP Min Length

L50mm

PCB DIP Min Width

W30mm

PCB DIP Max Length

L1200mm

PCB DIP Max Width

W500mm

Inter package

Vacuum/ Antistatic Bag

Outer package

Carton

SMT capacity

Four Million point/day



Electronics Circuit board PCB Assembly


1. RoHS & Lead Free
2. UL & ISO certified
3. Quality & service
4. Quick turn
5. Surface finish: Immersion Gold/HALS/OSP/Gold finger/Carbon print/Peelable mask/Plating gold
6. Solder mask colour: green/white/yellow/blue/red/black
7. Silk screen: white/black/yellow/red/blue/green
8. Applied in industrial facilities/medical facilities/consumer electronics/telecommunications/power supply
We deliver services, not only products.
We offer solutions, not only goods.



Deliver Time For PCB & PCBA


1.   PCB production time:  sample:  3-4 days /   production: within 7 days

2.   Fast pcb delivery: 24 hours for 2L ; 48 hours for 4L ; 72 hours for 6L.

3.  Component purchase: 2 days if all components is available in our domestic market.

4.  PCB Assembly:  samples: within 8 days / mass production: within 12 days


LAYER

PROTOTYPE

MASS PRODUCTION   (above 20 m2)

Quick Turn

Standard Time

MC PCB

48 hours

4-5 days

10-12 days

PFC 1 L

48 hours

5-6 days

12-13 days

1L

24 hours

3-4 days

8-10 days

2L

24 hours

3-4 days

8-10 days

4L

48 hours

5-6 days

8-10 days

6L

72 hours

6-7 days

10-12 days

8L

72 hours

7-8 days

12-14 days

10L

96 hours

9-10days

16-18 days




One-stop Service Include


PCB Prototype

Quick Turn PCB

Single-Sided PCB

Double-Sided PCB

Multilayer PCB

Rigid PCB

Flexible PCB

Rigid-Flex PCB

LED PCB

Aluminum PCB

Metal Core PCB

Thick Copper PCB

HDI PCB

BGA PCB

High TG PCB

PCB Stencil

Impedance Control PCB

PCB Assembly

High-Frequency PCB

Bluetooth Circuit Board

Automotive PCB

USB Circuit Board

Halogen-Free PCB

Antenna PCB
