LED Display FPC/ Flex PCB Fabrication

UL&IPC Standard & ISO

Layer:
2 L
Material:
PI
PCB Thickness:
0.2mm
Cu Thickness:
1.5 OZ
Min line W/S:
0.075/0.075mm
Surface finish:
Immersion gold
Certificate:
UL/ISO/IATF16949
Application:
Consumer Electronics

Inquiry now

Product Detail

Item	Speci.
Layers	1~32
Board thickness	0.1mm-7.0mm
Material	FR-4，CEM-1/CEM-3，PI，High Tg，Rogers
Max panel size	32"×48"(800mm×1200mm)
Min hole size	0.075mm
Min line width	3mil(0.075mm)
Surface finish	OSP，HASL，Imm Gold/Nickel/Ag， Electric gold
Copper thickness	0.5-7.0OZ
Soldermask	Green/Yellow/Black/White/Red/Blue
Silkscreen	Red/Yellow/Black/White
Min PAD	5mil(0.13mm)
Inter package	Vacuum
Outer package	Carton
Outline tolerance	±0.075mm
Hole tolerance	PTH：±0.05 NPTH：±0.025
Certificate	UL，ISO 9001，ISO14001，IATF16949
Special request	Blind hole+Gold finger + BGA
Material Suppilers	Shengyi, KB, Nanya, ITEQ,etc.

PCB Manufacturing Services

As one of the leading Printed Circuit Board manufacturers based in China, Ucreate has been offering international companies of all sizes with high-quality PCB prototype to production services at a fair price for eight years. To make professional and advanced circuit boards, we're committed to adhering to the strictest standards during the PCB manufacturing process. We're fully compliant with the ISO 9001:2008 quality management system.

- Save money&time! Achieve peace of mind!
- A professional and trustworthy PCB Prototype manufacturer.
- Fastest PCB Prototype.
- One-stop solution for various PCB& SMT Stencil.
- Low cost for simple PCB.
- Affordable price for high-tech PCB.
- Minimum orders 1pcs.
- 24-hour online customer service.
- Professional PCB engineer for one-to-one service.
- Shipment on time.
- Guarantee good service and quality from PCB quotation to delivery.

PCB Assembly Services

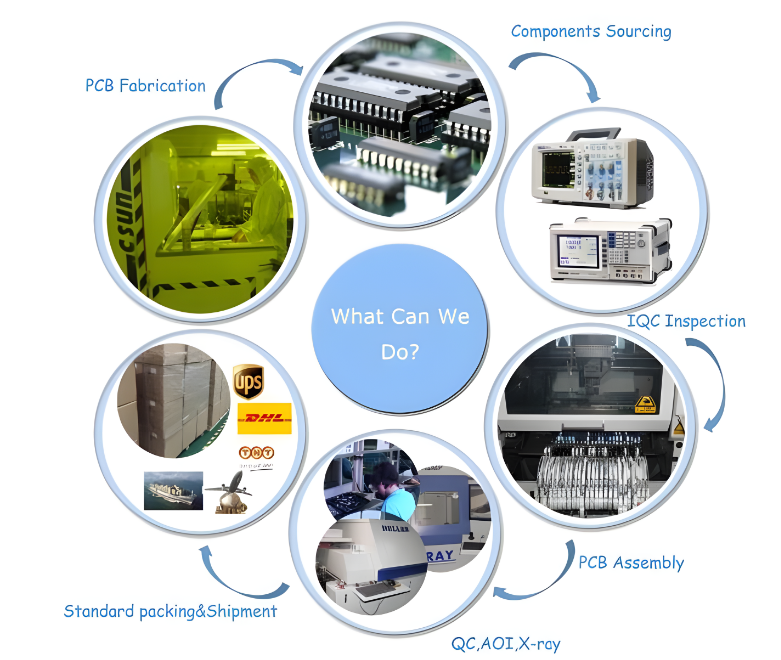

To deliver real value and convenience to our PCB fabrication clients, we expand our business to components sourcing and turnkey PCB assembly services ranging from the prototype, low-to-middle volume to high volume up to 1 million pcs. We can mount components on circuit boards using surface mount technology (SMT),through-hole technology (THT), and manual insertion:

- High-quality assembly services with short lead times
- No minimum order
- No additional charge for stencils
- Free DFM Check
- 100% AOI test and X-Ray test for BGAs package
- Function tests & IC programming based on custom requirements

All boards are produced according to IPC-6012 standards and inspected according to IPC-A-600 in the latest version. Our products are widely applied in communications, industrial control, power electronics, medical equipment, security electronics, consumer electronics, LED, etc. More than 90 percent of them were exported to Europe, North America, South America.

Deliver Time For PCB & PCBA

1. PCB production time: sample: 3-4 days / production: within 7 days

2. Fast pcb delivery: 24 hours for 2L ; 48 hours for 4L ; 72 hours for 6L.

3. Component purchase: 2 days if all components is available in our domestic market.

4. PCB Assembly: samples: within 8 days / mass production: within 12 days

LAYER	PROTOTYPE		MASS PRODUCTION (above 20 m2)
	PROTOTYPE
	Quick Turn	Standard Time
MC PCB	48 hours	4-5 days	10-12 days
PFC 1 L	48 hours	5-6 days	12-13 days
1L	24 hours	3-4 days	8-10 days
2L	24 hours	3-4 days	8-10 days
4L	48 hours	5-6 days	8-10 days
6L	72 hours	6-7 days	10-12 days
8L	72 hours	7-8 days	12-14 days
10L	96 hours	9-10days	16-18 days

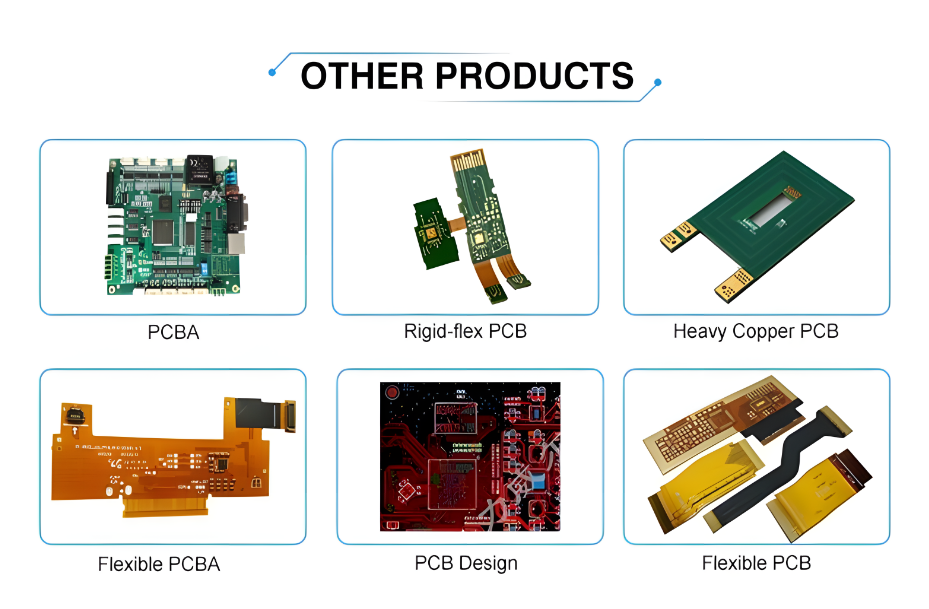

One-stop Service Include

PCB Prototype	Quick Turn PCB	Single-Sided PCB
Double-Sided PCB	Multilayer PCB	Rigid PCB
Flexible PCB	Rigid-Flex PCB	LED PCB
Aluminum PCB	Metal Core PCB	Thick Copper PCB
HDI PCB	BGA PCB	High TG PCB
PCB Stencil	Impedance Control PCB	PCB Assembly
High-Frequency PCB	Bluetooth Circuit Board	Automotive PCB
USB Circuit Board	Halogen-Free PCB	Antenna PCB
