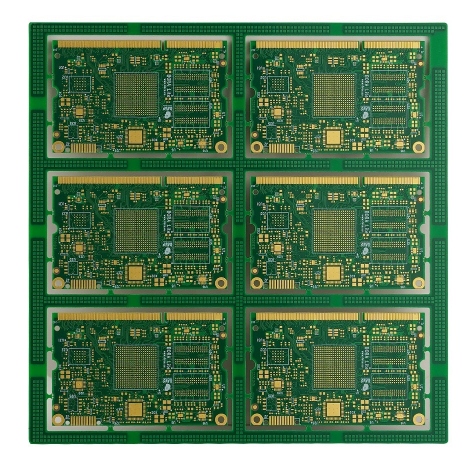

PCB Panelization is a manufacturing process in the electronics industry where multiple individual printed circuit boards (PCBs) are arranged and grouped together on a larger panel or substrate. The purpose of this technique is to optimize the use of manufacturing resources and equipment, improve production efficiency, and reduce overall costs.

The PCBs are laid out on the panel in a way that maximizes the use of available space while maintaining proper spacing between individual boards to facilitate assembly, testing, and later separation. Panelization is commonly used for mass production of PCBs, especially when dealing with smaller-sized boards or when producing large quantities of the same design.


The advantages of PCB Panelization include:

Cost Efficiency: Panelizing multiple PCBs on a single large panel reduces the material waste and manufacturing setup time, leading to cost savings in production.

Streamlined Assembly: PCB assembly becomes more efficient, as pick-and-place machines can handle multiple boards in one pass, reducing production time.

Consistency and Precision: Panelization ensures uniformity and precision in PCB manufacturing, reducing variations that may occur when assembling individual boards.

Design Flexibility: Different PCB designs can be combined on the same panel, making it easier to manufacture prototypes and different product variations together.

Ease of Handling: Handling larger panels during production and transportation is often more convenient and less prone to damage than dealing with individual small boards.

Testing and Debugging: It's easier to test and debug a group of boards simultaneously, which can lead to quicker identification and resolution of issues.



After the PCBs are assembled and tested on the panel, they are typically separated through methods like v-scoring or tab-routing, allowing the individual boards to be detached and used in the final products.


Overall, PCB Panelization is a valuable technique in the electronics industry, enabling manufacturers to optimize production efficiency, reduce costs, and deliver high-quality products to the market more effectively.



How to depanelize?

Depanelization is the process of separating individual printed circuit boards (PCBs) from a larger panel or substrate after they have been assembled and tested. There are several methods for depanelizing PCBs, and the choice of method depends on the type of PCB, the complexity of the design, and the production volume. Here are some common methods used for depanelization:

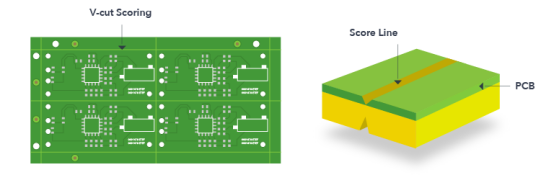

1. V-Scoring (V-Groove):
V-Scoring also call V-cut scoring, which is a popular method for depanelizing PCBs. It involves creating V-shaped grooves on the top and bottom sides of the PCB panel along the intended separation lines.
Once the boards are assembled, they can be easily separated by breaking along the scored lines.
V-Scoring is suitable for rectangular or square-shaped PCBs with straight edges.

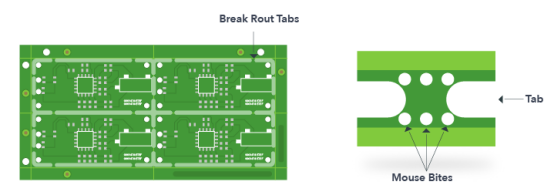

2. Tab-Routing (Tab Routing):
Tab-Routing involves leaving small tabs of uncut material between individual PCBs on the panel.After assembly and testing, the PCBs are separated by cutting or breaking the tabs.
This method is suitable for irregularly shaped PCBs or designs with complex outlines.

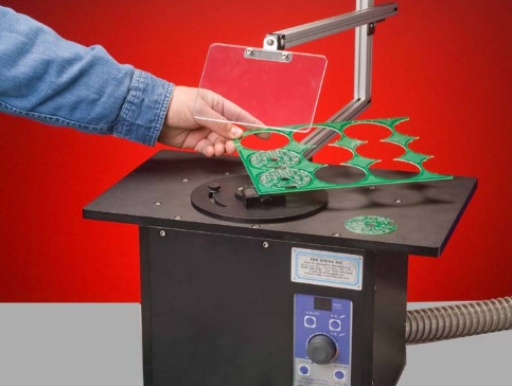

3. Depaneling Router:

A depaneling router is a machine equipped with a rotary cutting tool that can precisely cut through the panel to separate individual PCBs.
This method is suitable for high-volume production and can handle various PCB shapes.

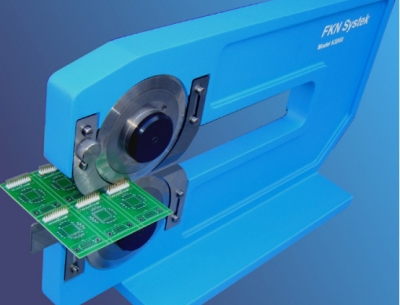

4. Depaneling Saw:
A depaneling saw is a circular or linear blade tool that can cut through the PCB panel to separate the boards.
This method is suitable for low to medium volume production and can handle rectangular or square-shaped PCBs.


5. Punching and Breaking:
For smaller PCBs, manual methods like punching or breaking along pre-defined weak points can be used to separate the boards.
This method is cost-effective for small-scale production but may not be suitable for more complex or densely populated PCBs.

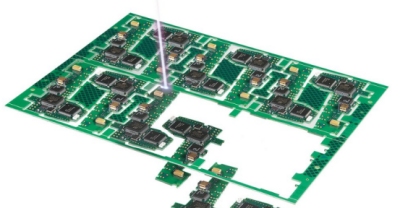

6. Laser Depaneling:
Laser depaneling is a precise and non-contact method that uses a focused laser beam to cut through the panel along the intended separation lines.
This method is suitable for delicate and densely populated PCBs.

Before selecting a depanelization method, it's essential to consider factors such as board material, thickness, complexity, and production volume. Additionally, ensuring that the depaneling process does not damage components or traces on the PCB is crucial to maintain product quality. Manufacturers often use specific depaneling machines or subcontract specialized depaneling services to ensure accurate and reliable separation of PCBs.
