There are several different types of PCBs available, each designed to meet specific requirements and applications. Here are some of the common types:

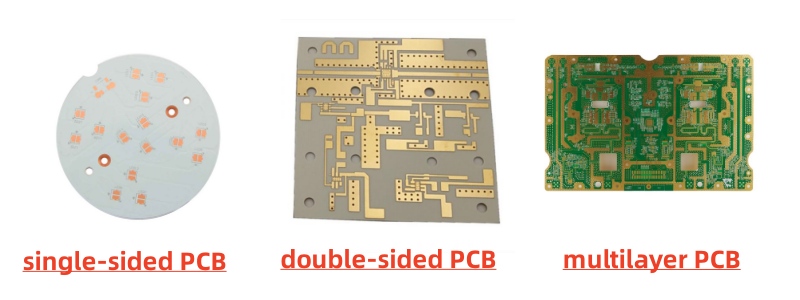

1. Single-sided PCB

Also known as single-layer PCBs, are the simplest and most basic type of printed circuit boards. They consist of a single layer of substrate material, typically fiberglass-reinforced epoxy, with conductive copper traces and components mounted on one side of the board. The copper traces serve as the conductive pathways for electrical signals and power distribution.

Advantages of Single-Sided PCBs:
Simplicity: Single-sided PCBs have a straightforward design, making them easy to manufacture and cost-effective.
Low Cost: Due to their simple structure, single-sided PCB cost are generally less expensive to produce compared to multilayer PCBs.
Easy Prototyping: Single-sided circuit board are commonly used for prototyping and testing purposes before moving to more complex designs.
Lightweight: With only one layer of substrate, single-sided PCBs are lightweight and suitable for applications where weight is a concern.
Adequate for Simple Applications: Single-sided circuit board are sufficient for basic electronic circuits with fewer components and limited complexity.

Limitations of Single-Sided PCBs:
Limited Complexity: Single-sided PCBs have limited routing options and space for components, making them unsuitable for complex circuit designs.
Lack of Signal Isolation: With all traces on a single layer, there is no physical separation between signal paths, which can lead to interference and signal crosstalk.
Restricted Component Density: The single-layer design limits the number of components that can be placed on the board.
Reduced Functionality: Certain advanced features, such as impedance control or high-speed signal routing, are challenging to achieve on single-sided PCBs.

Applications of Single-Sided PCBs:
Consumer Electronics: Single-sided PCBs are widely used in consumer electronics such as calculators, remote controls, and toys.
LED Lighting: Single-sided PCBs are suitable for simple LED lighting applications where cost efficiency is essential.
Automotive Electronics: Single-sided PCBs find application in automotive systems like dashboard controls, lighting modules, and entertainment systems.
Power Supplies: Single-sided PCBs are used in low-power applications such as basic power supply circuits.
Industrial Controls: Single-sided PCBs can be found in industrial control systems, sensors, and basic automation equipment.

In summary, single-sided PCBs offer simplicity, cost-effectiveness, and suitability for basic electronic circuits. While they have limitations regarding complexity and functionality, they serve as a practical choice for applications with fewer components and straightforward circuit designs.

2. Double-sided PCB

Double-sided PCBs, also known as double-layer PCBs, are a type of printed circuit board that consists of two layers of substrate material with conductive copper traces and components mounted on both sides of the board. The copper traces on the top and bottom layers are connected through plated through-holes or vias, allowing for electrical connectivity between the layers.

Advantages of Double-Sided PCBs:
Increased Component Density:Double-sided circuit board provide more space for placing components, allowing for increased component density and complexity compared to single-sided PCBs.
Improved Signal Routing: With traces on both sides of the board, double-sided PCBs offer more routing options, enabling better signal integrity and reducing the chances of interference or crosstalk.
Enhanced Functionality: Double-sided PCBs can accommodate more complex circuit designs, including circuits with multiple layers of connectivity.
Versatility: Double-sided PCBs are suitable for a wide range of applications, from simple consumer electronics to more sophisticated industrial and automotive systems.
Cost-Effective: While slightly more expensive than single-sided PCBs, double-sided PCB cost are still cost-effective compared to multilayer PCBs, making them a popular choice for many applications.

Limitations of Double-Sided PCBs:
Complexity Constraints: Despite offering more design flexibility, double-sided PCBs have limitations regarding the complexity of circuit designs when compared to multilayer PCBs.
Limited Power Distribution: Double-sided PCBs may face challenges in efficiently distributing power throughout the board due to limited internal copper planes.
Manufacturing Complexity: The fabrication process for double-sided PCBs is more involved than that of single-sided PCBs, requiring accurate alignment and drilling of plated through-holes.

Applications of Double-Sided PCBs:

Industrial Controls: Double-sided PCBs find extensive use in industrial control systems, including motor drives, PLCs (Programmable Logic Controllers), and robotics.
Power Supplies: Double-sided PCBs are commonly employed in power supply units, both in consumer electronics and industrial applications.
Automotive Electronics: Double-sided PCBs are utilized in various automotive systems such as engine control units, infotainment systems, and dashboard controls.
Communication Devices: Double-sided PCBs are found in communication devices like routers, modems, and wireless devices.
Consumer Electronics: Double-sided PCBs are used in a wide range of consumer electronics, including smartphones, tablets, televisions, and audio equipment.

In summary, double-sided PCBs offer increased design flexibility, improved component density, and enhanced signal routing compared to single-sided PCBs. They strike a balance between complexity and cost-effectiveness, making them a popular choice for a wide range of applications in various industries.

3.  Multilayer PCB

Multilayer PCBs, also known as multi-layered PCBs, are a type of printed circuit board that consists of multiple layers of substrate material with conductive copper traces and components mounted between the layers. These layers are connected through plated through-holes or vias, allowing for electrical connectivity and signal transmission between the different layers.

Advantages of Multilayer PCBs:
Increased Component Density: Multilayer PCBs provide a higher component density compared to single-sided or double-sided PCBs. They offer more layers for placing components and routing traces, allowing for complex circuit designs in a compact space.
Enhanced Signal Integrity: With dedicated internal power and ground planes, multilayer PCBs offer improved signal integrity by minimizing noise, reducing crosstalk, and providing better impedance control.
Design Flexibility: Multilayer PCBs offer greater design flexibility, allowing for the implementation of advanced features such as high-speed signal routing, differential signaling, and mixed-signal integration.
Space and Weight Savings: Multilayer PCBs help save space by integrating multiple circuit layers into a single board. This is particularly useful in compact electronic devices where size and weight are critical factors.
EMI/EMC Considerations: Multilayer PCBs offer better electromagnetic interference (EMI) and electromagnetic compatibility (EMC) performance due to the presence of dedicated ground and power planes, which help in shielding and noise reduction.

Limitations of Multilayer PCBs:
Cost: Multilayer PCBs are more expensive to manufacture compared to single-sided or double-sided PCBs. The increased complexity of fabrication processes, including layer alignment, drilling, and plating, contributes to higher production costs.
Design Complexity: Designing multilayer PCBs requires careful planning and consideration of signal integrity, power distribution, and thermal management. Complex designs may necessitate advanced design software and expertise.
Repair and Rework Challenges: Repairing or reworking multilayer PCBs can be more challenging compared to single-sided or double-sided PCBs. Accessing internal layers and traces can be difficult, and specialized equipment and skills are often required.

Applications of Multilayer PCBs:
High-End Computing: Multilayer PCBs are extensively used in high-performance computing systems, servers, and data centers where complex circuitry and high-speed signal transmission are critical.
Telecommunications: Multilayer PCBs are employed in telecommunications equipment such as routers, switches, and base stations that require high-density circuitry and signal integrity.
Aerospace and Defense: Multilayer PCBs find application in aerospace and defense systems, including avionics, radar systems, communication equipment, and missile guidance systems.
Medical Devices: Multilayer PCBs are used in medical devices such as imaging equipment, patient monitoring systems, and diagnostic instruments, where compactness and reliability are crucial.
Automotive Electronics: Multilayer PCBs are employed in automotive electronics for advanced driver-assistance systems, engine control units, infotainment systems, and safety systems.
In summary, multilayer PCBs offer increased design flexibility, improved signal integrity, higher component density, and space savings compared to single-sided or double-sided PCBs. While they come with higher production costs and design complexity, multilayer PCBs are essential for advanced electronic applications that require compactness, high-performance, and reliable signal transmission.

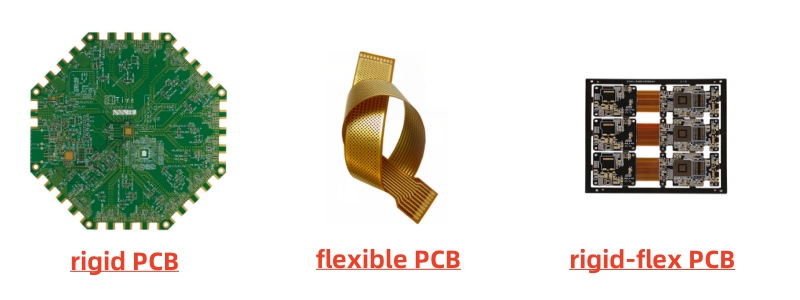

4. Rigid PCB

Rigid PCBs, also known as rigid printed circuit boards, are a type of PCB that consists of a solid, inflexible substrate material, typically made of fiberglass-reinforced epoxy. Rigid PCBs provide a sturdy and rigid platform for mounting electronic components and creating electrical connections.

Advantages of Rigid PCBs:
Structural Stability: Rigid PCBs offer excellent structural stability due to their solid and inflexible nature. They provide a reliable base for mounting components and ensure the integrity of the circuitry.
High Component Density: Rigid PCBs allow for high component density, enabling the integration of complex electronic circuits in a compact space.
Durability: Rigid PCBs are highly durable and resistant to mechanical stress, making them suitable for applications that require robustness and long-term reliability.
Cost-Effectiveness: Rigid PCBs are generally more cost-effective to manufacture compared to flexible or rigid-flex PCBs, making them a preferred choice for many electronic applications.
Thermal Management: The rigidity of these PCBs allows for effective heat dissipation and thermal management, ensuring that electronic components operate within safe temperature ranges.

Limitations of Rigid PCBs:
Limited Flexibility: Unlike flexible or rigid-flex PCBs, rigid PCBs lack flexibility and cannot be bent or twisted. They are unsuitable for applications that require conformability or the ability to withstand repeated bending.
Space Limitations: Rigid PCBs may have space limitations, especially in small electronic devices or designs where space optimization is crucial.
Complex Designs: Complex designs involving intricate layouts, high-speed signaling, or multiple layers may be more challenging to implement on rigid PCBs compared to more advanced technologies like multilayer or flexible PCBs.

Applications of Rigid PCBs:
Consumer Electronics: Rigid PCBs are widely used in various consumer electronic devices such as smartphones, tablets, televisions, home appliances, and gaming consoles.
Industrial Controls: Rigid PCBs find application in industrial control systems, automation equipment, robotics, and manufacturing machinery.
Automotive Electronics: Rigid PCBs are utilized in automotive electronics, including engine control units, dashboard controls, infotainment systems, and safety systems.
Aerospace and Defense: Rigid PCBs are crucial in aerospace and defense applications, including avionics, navigation systems, communication equipment, and military-grade electronics.
Medical Devices: Rigid PCBs are employed in medical devices such as diagnostic equipment, monitoring devices, implantable devices, and medical imaging systems.
In summary, rigid PCBs provide a solid and stable platform for mounting electronic components and creating electrical connections. They offer structural stability, durability, and cost-effectiveness, making them suitable for a wide range of electronic applications across industries. While they lack flexibility and may have limitations in complex designs, rigid PCBs remain a popular choice for many electronic devices and systems.

5. Flexible PCB

Flexible PCBs, also known as flex PCBs or flexible printed circuit boards, are a type of PCB that offers flexibility and bendability due to the use of flexible substrate materials. These FPCs are designed to be bent, folded, or twisted to fit into tight spaces or conform to the shape of the device or product they are incorporated into.

Advantages of Flexible PCBs:
Flexibility and Bendability: The primary advantage of flexible PCBs is their ability to bend and flex without breaking. They can be folded, twisted, or curved to fit into compact or irregularly shaped electronic devices, allowing for greater design freedom.
Space Savings: Flexible PCBs enable space savings in electronic designs by conforming to the available space and eliminating the need for connectors and additional wiring. This makes them ideal for compact and miniaturized electronic devices.

Lightweight: Flexible PCBs are lightweight due to the use of thin and flexible substrate materials, making them suitable for applications where weight reduction is crucial.
Improved Reliability: Flexible PCBs eliminate the risk of solder joint fatigue and mechanical stress that can occur in rigid PCBs due to their ability to absorb and distribute stress during bending or flexing.
High Signal Integrity: Flexible PCBs can provide excellent signal integrity due to their ability to accommodate controlled impedance traces, minimizing signal loss and electromagnetic interference.

Limitations of Flexible PCBs:

Cost: Flexible PCBs are generally more expensive to manufacture compared to rigid PCBs. The materials and processes involved in producing flexible circuits contribute to the higher cost.
Design Complexity: Designing flexible PCBs can be more complex than rigid PCBs. Special considerations need to be taken into account, such as bend radius, trace routing, and component placement, to ensure the reliability and functionality of the flexible circuit.
Limited Component Density: Flexible PCBs may have limitations in terms of component density and the number of layers that can be incorporated compared to rigid PCBs or multilayer designs.
Assembly Challenges: Assembling components on flexible PCBs can be more challenging due to the flexibility of the substrate. Specialized equipment and techniques are often required to ensure proper soldering and component attachment.

Applications of Flexible PCBs:
Consumer Electronics: Flexible PCBs are widely used in consumer electronic devices such as smartphones, tablets, wearables, flexible displays, and portable devices where space and weight savings are crucial.
Automotive Electronics: Flexible PCBs are utilized in automotive applications such as dashboard controls, lighting systems, seat controls, and advanced driver-assistance systems (ADAS).
Aerospace and Defense: Flexible PCBs find application in aerospace and defense systems, including avionics, satellites, missile systems, and military-grade equipment where vibration resistance and space optimization are critical.
Medical Devices: Flexible PCBs are employed in medical devices such as medical imaging equipment, implantable devices, wearable health monitors, and diagnostic devices where flexibility and biocompatibility are required.
Industrial and IoT Devices: Flexible PCBs are used in industrial controls, IoT devices, sensors, and other applications where space constraints, durability, and reliability are essential.

In summary, flexible PCBs offer flexibility, space savings, lightweight design, and improved reliability compared to rigid PCBs. They are particularly suitable for applications that require bending or flexing, compactness, and weight reduction. While they come with certain limitations and higher manufacturing costs, flexible PCBs are widely used in various industries to meet the demands of modern electronic devices.

6. Rigid-flex PCB

Rigid-flex PCBs, also known as rigid-flexible printed circuit boards, are a hybrid type of PCB that combine the features of both rigid PCBs and flexible PCBs. They consist of a combination of rigid and flexible layers interconnected to create a single integrated board. Rigid-flex PCBs provide a flexible section that allows for bending and folding while maintaining the structural integrity and stability of the rigid sections.

Advantages of Rigid-Flex PCBs:
Space Savings: Rigid-flex PCBs offer significant space savings compared to traditional rigid PCBs and flexible PCBs. They eliminate the need for connectors and extra cabling, reducing the overall size and weight of the electronic device.
Design Flexibility: Rigid-flex PCBs provide designers with greater flexibility in circuit layout and component placement. They can be customized to fit into complex and irregularly shaped enclosures, maximizing the available space and enabling unique form factors.
Improved Reliability: The combination of rigid and flexible sections in rigid-flex PCBs results in improved reliability. The rigid sections provide stability and protect critical components, while the flexible sections absorb and distribute mechanical stress, reducing the risk of solder joint fatigue and failure.
Enhanced Signal Integrity: Rigid-flex PCBs offer excellent signal integrity due to their ability to integrate controlled impedance traces and reduce signal loss. The flexible sections can accommodate high-speed signals, minimizing electromagnetic interference and signal degradation.
Simplified Assembly: Rigid-flex PCBs simplify the assembly process by reducing the number of interconnects and soldering points. This leads to improved manufacturing efficiency, lower assembly costs, and fewer opportunities for connection failures.

Limitations of Rigid-Flex PCBs:
Complexity and Cost: Rigid-flex PCBs are more complex to design and manufacture compared to rigid PCBs or flexible PCBs. The additional complexity increases the production cost and may require specialized equipment and expertise.
Design Constraints: Designing rigid-flex PCBs requires careful consideration of bending areas, flex radius, and component placement to ensure reliable performance. These constraints can limit design options and increase design iterations.
Repair and Rework Challenges: Repairing or reworking rigid-flex PCBs can be more challenging compared to rigid or flexible PCBs due to the combination of different materials and construction methods. Specialized tools and techniques may be required.

Applications of Rigid-Flex PCBs:
Aerospace and Defense: Rigid-flex PCBs are widely used in aerospace and defense applications, including avionics, satellites, military communication systems, and missile guidance systems.
Medical Devices: Rigid-flex PCBs find application in medical devices such as implantable devices, medical imaging equipment, patient monitoring systems, and wearable health devices.
Consumer Electronics: Rigid-flex PCBs are used in various consumer electronic devices, including smartphones, tablets, laptops, wearable devices, and flexible displays.
Automotive Electronics: Rigid-flex PCBs are employed in automotive applications such as advanced driver-assistance systems (ADAS), instrument clusters, infotainment systems, and electronic control units (ECUs).
Industrial and IoT Devices: Rigid-flex PCBs are used in industrial controls, Internet of Things (IoT) devices, robotics, sensors, and other applications where reliability, space optimization, and flexibility are critical.

In summary, rigid-flex PCBs offer a unique combination of flexibility and stability, providing space savings, design flexibility, improved reliability, and enhanced signal integrity. While they come with increased complexity and cost, rigid-flex PCBs are widely utilized in various industries to meet the demands of advanced electronic systems and devices.
