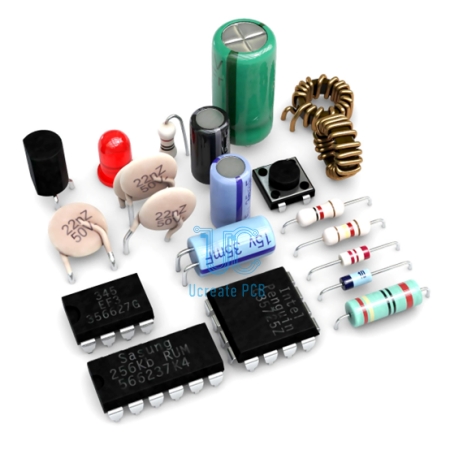

This article analyzes in detail the important components in PCBA circuit boards, including the principles, characteristics and application scenarios of resistors, capacitors, inductors and diodes. Moreover, it also reveals the unique role and importance of each component in the entire PCBA circuit board, showing how these components work together to meet various functional requirements of electronic equipment.

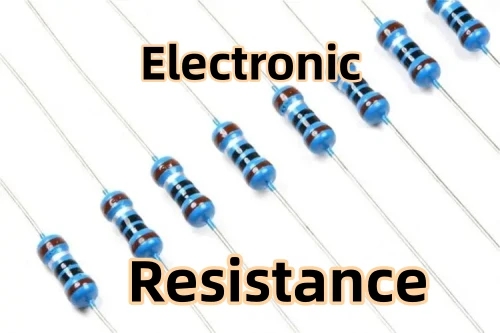

1. Resistance

Resistors are the most common components in PCBA circuit boards. The main function of a resistor is to control the size of the current and protect the safe operation of the circuit and its components. The unit of resistance is ohms and is generally used for current distribution and voltage conversion.

Resistors are mainly classified into fixed resistors and variable resistors. The fixed resistor value is immutable, while the variable resistor value can be adjusted for more detailed control of the current. At the same time, resistors can also be classified according to their materials, such as metal resistors, carbon resistors, etc.

The position of the resistor in the PCBA circuit board is usually very prominent, because it plays a key role in various circuits. They may play a role in circuits such as power supply, amplification, and detection, and are filled in every corner.

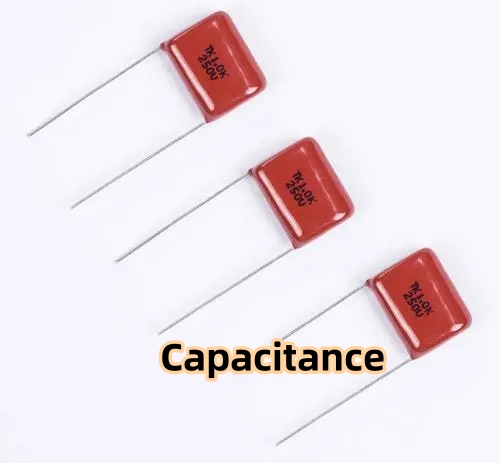

2. Capacitance

Capacitors are another common component in SMT PCBA Boards. The function of a capacitor is to store and release electrical energy, which can cause a delay in the current in the circuit, thereby filtering, coupling, bypassing, and tuning the circuit.

There are many types of capacitors, such as fixed capacitors, variable capacitors, polar capacitors and non-polar capacitors. Fixed capacitors can be divided into ceramic capacitors, Tatarin capacitors, electrolytic capacitors, etc.

Capacitors can be seen everywhere in the circuit, and they play an important role in power filtering, signal amplification, signal processing and other circuits. Only by understanding the working principle of capacitors can we understand the circuit more deeply.

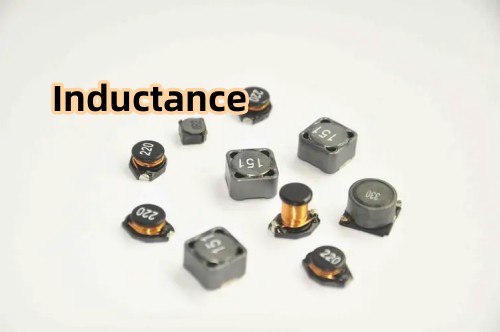

3. Inductance

Inductor is a passive component in PCB Electronic Soldering. Inductors are mainly used for current smoothing, filtering and coupling, and can also restrict the passage of alternating current and store a part of electric energy.

Types of inductors include electroacoustic coils, transformer coils, inductance measuring coils, etc. They have important applications in various circuits, especially in power circuits and signal processing circuits.

Inductors are not as widely used as resistors and capacitors, but they play an irreplaceable role in filtering and voltage stabilization. For the entire PCBA circuit board, inductors are an important part of maintaining the normal operation of the circuit.

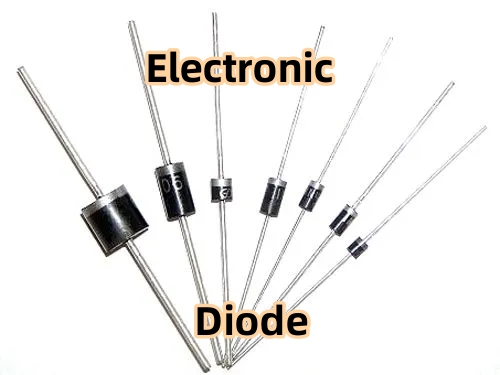

4. Diode

Diode is an important semiconductor device in PCB Electronics Manufacturing Service. The main function of a diode is to only allow current to flow in one direction, and is often used in rectification, modulation, oscillation and other circuits.

There are many types of diodes, the most common of which is the rectifier diode, which converts alternating current into direct current. In addition, there are LEDs, light-emitting diodes, etc.

The role of diodes in PCBA circuit boards cannot be ignored. They play an important role in power rectification, signal demodulation, photoelectric conversion and other circuits. The rise of diodes has greatly enriched and expanded the functions of electronic devices.

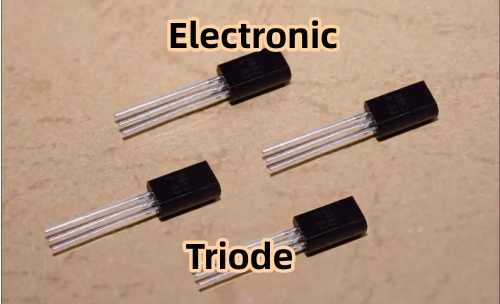

5. Triode

A triode is a type of electronic device used in electronics for amplification and switching purposes. It's a three-terminal device consisting of a cathode, an anode (plate), and a control electrode called the grid. The flow of current between the cathode and anode can be controlled by varying the voltage applied to the grid.

The triode was one of the first types of vacuum tubes (electron tubes) to be developed and was a crucial component in early electronic circuits. It played a significant role in the advancement of electronics and telecommunications during the first half of the 20th century.

The operation of a triode is based on the control of electron flow between the cathode and anode. When a negative voltage is applied to the grid with respect to the cathode, it repels the negatively charged electrons emitted by the cathode, reducing the current flow from cathode to anode. Conversely, a positive voltage on the grid attracts electrons, increasing the current flow.

Triodes were widely used in early radio receivers, amplifiers, and electronic equipment. However, they had limitations, such as relatively high power consumption, heat generation, and size. As technology advanced, triodes were largely replaced by more efficient and compact components, such as transistors and integrated circuits.

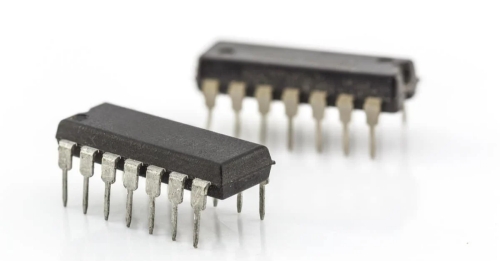

6. Integrated Circuits (ICs)

These are miniaturized electronic circuits that can contain a wide range of components like transistors, resistors, and capacitors. ICs perform various functions like amplification, processing, and logic operations.

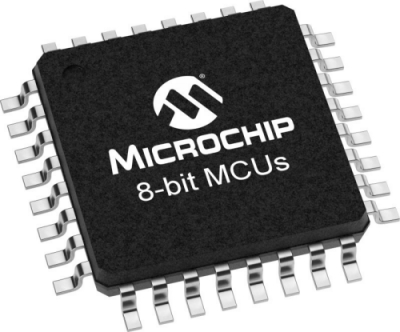

7. Microcontrollers (MCUs)

These are specialized ICs that contain a processor, memory, and input/output peripherals. They're the "brains" of many devices, from simple embedded systems to complex electronics.

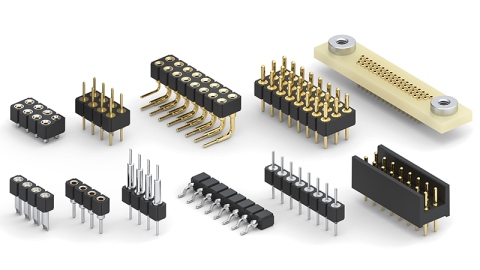

8. Connectors

Connectors provide physical links between different parts of the circuit or to external devices. Examples include USB connectors, audio jacks, and headers.

9.Crystal Oscillators

These components generate precise frequencies used for timing in microcontrollers, processors, and communication devices.

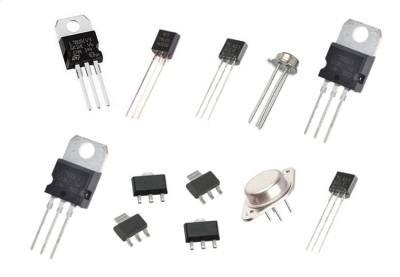

10. Voltage Regulators

These components maintain a steady output voltage despite variations in input voltage or load. They're crucial for providing stable power to various parts of the circuit.

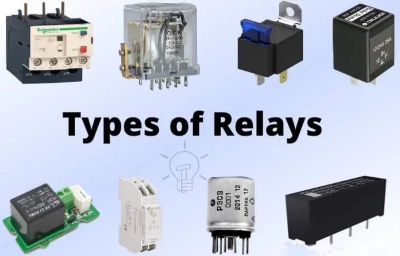

11.Relays

Relays are switches that are controlled electronically. They're used to control higher-voltage or higher-current circuits using a lower-voltage or lower-current control signal.

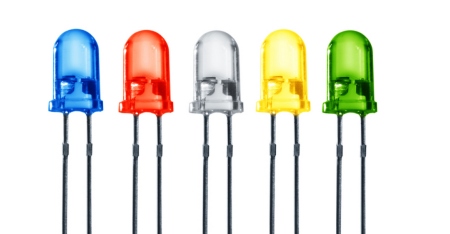

12. LEDs (Light Emitting Diodes)

LEDs emit light when a current flows through them. They're used for indicator lights, displays, and lighting.
