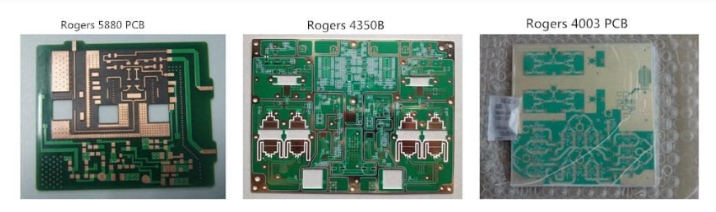

Rogers 5880 PCB is a high-frequency circuit board material with excellent high-frequency performance and mechanical properties, and is widely used in wireless communication, satellite communication, radar, microwave communication and other fields. This article introduces Rogers 5880 in detail from four aspects: sheet parameters, characteristics, applications and advantages.

1. Plate parameters:

Rogers 5880 board is a polytetrafluoroethylene (PTFE)-based material with a dielectric constant of 2.2 and thicknesses ranging from 0.003 inches to 0.240 inches. The copper foil thickness of the plate can be selected from 0.5oz, 1oz, 2oz and 3oz, and the surface treatment methods include chemical gold plating, chemical silver plating and chemical tin plating.

2. Features:

Rogers 5880 board has excellent high-frequency performance, stable dielectric constant, low loss, good impedance matching, and fast signal transmission. At the same time, the mechanical properties of the board are also very good, with the characteristics of high strength, high stiffness, good heat resistance, and chemical corrosion resistance.

3. Application:

Rogers 5880 board is widely used in wireless communication, satellite communication, radar, microwave communication and other fields. In these fields, plates are used to make circuit boards such as high-frequency antennas, power amplifiers, filters, couplers, and distributors.

4. Advantages:

Rogers 5880 has excellent high-frequency performance and mechanical properties, which can meet the requirements of high-frequency circuit boards. Compared with other materials, Rogers 5880 board has better dielectric constant stability, lower loss, better impedance matching and faster signal transmission speed. In addition, the mechanical properties of the board are also very good, which can meet the requirements of high strength, high stiffness, good heat resistance, and chemical corrosion resistance.

Rogers 5880 board is an excellent high-frequency circuit board material with excellent high-frequency performance and mechanical properties, and is widely used in wireless communication, satellite communication, radar, microwave communication and other fields. In the future development, Rogers 5880 plate will continue to play its advantages and provide better material selection for the manufacture of high-frequency circuit boards.
